Stronger Outside. Smarter Inside.[edit | edit source]
Timken offers one of the broadest lines of mounted bearing solutions with various selections for bearing types, sealing solutions, locking options and housing styles. Strong operational results come from repeatable, reliable performance. Reduce damage, contamination and downtime. Install Timken® Housed Units to achieve consistency, control and confidence.
|
|
|
|---|---|---|
|
|
|
|
|
|
Select the Bearing That Meets Your Demands[edit | edit source]

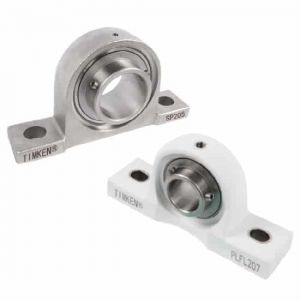

| Timken Fafnir Ball Bearing Housed Units | U Series | Solid Block – Spherical Roller Bearing | SNT Plummer Blocks | SAF Pillow Blocks | Type E Tapered Roller Bearing Housed Unit | Timken Split Cylindrical Roller Bearing Housed Units | Timken Corrosion-Resistant Ball Bearing Housed Units | Timken Corrosion-Resistant Poly-Round Housed Units | |
|---|---|---|---|---|---|---|---|---|---|
| Fafnir Ball Bearing | U Series Ball Bearing | SRB Solid Block | SNT Plummer | SAF Pillow | Type E | Split CRB | Corrosion-Resistant SS | Corrosion-Resistant Poly | |
| Bearing Insert | Wide Inner
Ring Ball |
Wide Inner Ring Ball | Spherical
Roller |
Spherical Roller | Spherical Roller | Tapered Roller | Cylindrical
Roller |
Stainless Steel Ball | Poly-Round® Plain |
| Size Range/ Shaft Size | 1/2-3 5/16 in | 1/2-5 1/2 in | 1 7/16-15 in | 1 3/8-19 1/2 in | 1 3/16-5 in | 1 7/16-24 in | 1/2-2 in | 1/2-3 1/2 in | |
| 12-90 mm | 12-140 mm | 40-380 mm | 20-500 mm | 35-125 mm | 40-600 mm | 20-50 mm | 12-90 mm | ||
| Housing Design | Solid | Solid | Solid | Split | Split | Solid | Split | Solid | Solid |
| Housing Materials | Cast Iron | Cast Iron | Cast Steel | Cast Iron | Cast Iron | Cast Iron | Cast Iron | Stainless | Stainless |
| Pressed Steel | Ductile Iron | Ductile Iron | Ductile Iron | Polymer | Polymer | ||||
| Malleable Iron | Cast Steel | ||||||||
| Pillow | Available | Available | Available | Available | Available | Available | Available | Available | Available |
| 2-Bolt | Available | Available | Available | Available | |||||
| 4-Bolt | Available | Available | Available | Available | Available | ||||
| 4-Bolt RND | Available | Available | Available | Available | Available | Available | |||
| Take Up | Available | Available | Available | Available | Available | Available | Available | ||
| Hanger | Available | Available | Available | ||||||
| Tappered Base | Available | Available | Available | ||||||
| Locking Styles | Set Screw (Shaft Guard Technology
on Y Series) |
Set Screw | Eccentric | Taper Adapter Sleeve | Taper Adapter Sleeve | Double Concentric | Double Clamp Rings | Set Screw | Adapter Sleeve |
| Concentric | Eccentric | Concentric | Cylindrical Mounting | Cylindrical Mounting | |||||
| Eccentric | Taper Adapter Sleeve | Taper Adapter Sleeve | |||||||
| V-Lock® Series | |||||||||
| Sealing | Single-Lip: Shrouded & Molded | Three-Element with Flinger | Labyrinth – DuPont™ Teflon® | Labyrinth | Labyrinth | Triple Barrier | 28 styles, (Kevlar® Packing and Aluminum Triple Labyrinth) | Three-Element with Flinger | |
| Tri-Ply | Triple-Lip – Nitrile, Urethane, Viton™ | Taconite | Timken Guard | ||||||
| Labyrinth | Double-Lip | Double-Lip | Dustac | ||||||
| Backing Plates | VR Seal | Taconite | |||||||
| End Covers | Closed | Closed: Urethane & Steel | Closed | CLosed | Closed: Urethane | Closed: Polymer & Stainless | Closed: Polymer & Stainless | ||
| Open: Urethane & Steel | Open: Urethane | Open: Polymer & Stainless | Open: Polymer & Stainless |
